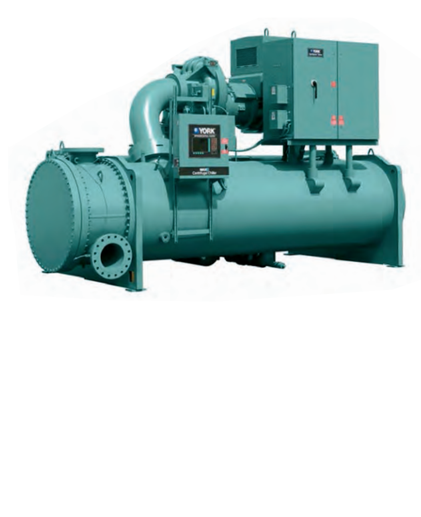

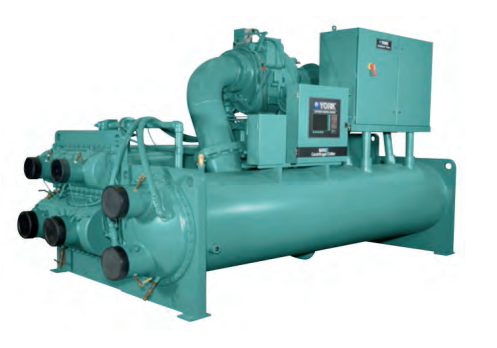

YK Water-cooled centrifugal chiller

Cooling capacities from 800 kW to 11250 kW

Available conf gurations that meet A Class energy eff ciency levels at Eurovent Standard Conditions.

• Overview
• Specifications
• Resources

Features

• The YORK YK chiller is designed for air conditioning and process applications.
• The high eff ciency single-stage centrifugal compressor is powered by an open-drive motor. This provides fl exibility to operate the chiller with electricity, steam, or gas depending on utility rates.
• The YK utilizes a falling f lm evaporator to increase chiller eff ciency and reduce refrigerant charges, which makes it ideal for LEED® building applications.
• This chiller is designed for indoor mechanical room installation and it requires a cooling tower for heat dissipation
• The inherent design fl exibility of this chiller allows it to be precisely selected for any building load prof le.

Water-cooled centrifugal chiller

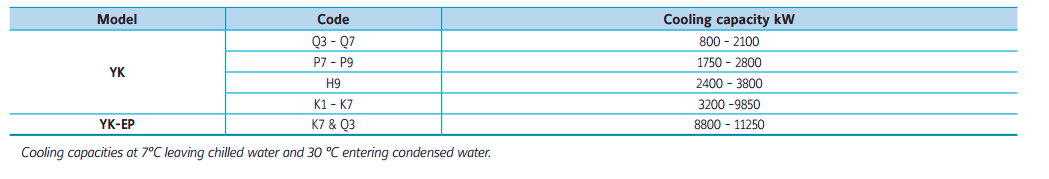

Nominal capacity

Heat Recovery The YK Heat Recovery option can be used for domestic hot water preheat, process heat, facility air reheat, and humidity control. Heat recovery delivers operational savings, CO2 reductions, and reduced water consumption.

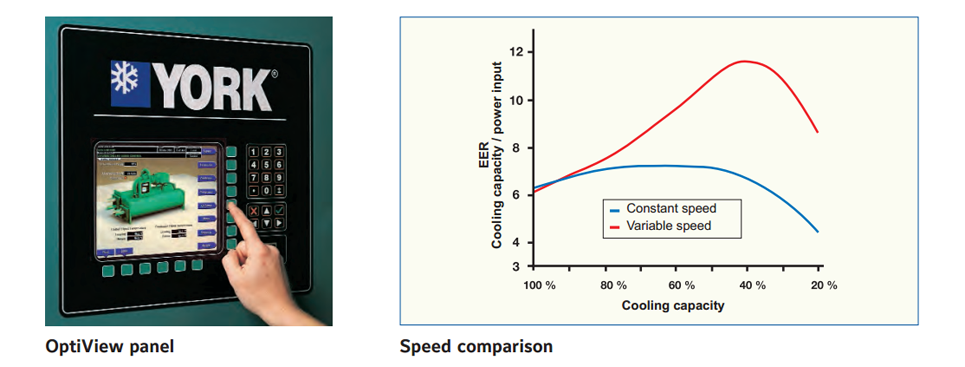

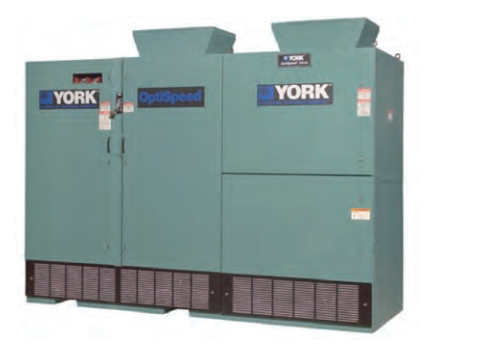

Medium Voltage Variable Speed Drive YORK has a full line of unit mounted and floor mounted Variable Speed Drives, from 380V to 11,000V, to maximize operational savings at off design conditions; which typically occur 99% of the time!

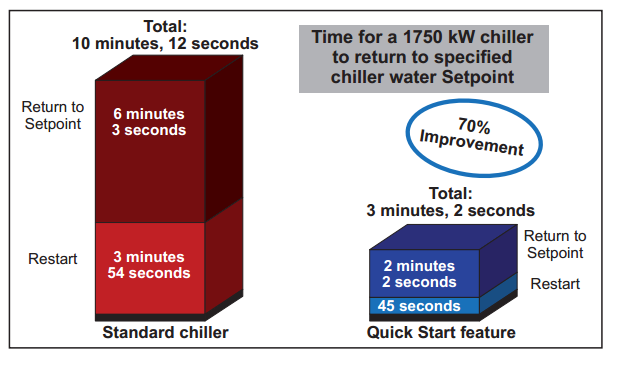

Quick Start (only available for VSD units)

Utilize Quick Start technology to improve chiller starting times and get back to setpoint up to 70% faster than standard chiller designs!

  Contact us for more info
