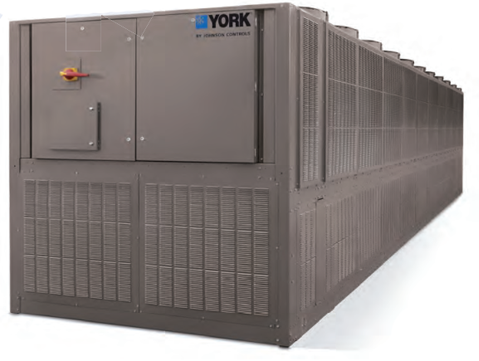

YVAA Air-Cooled Variable Speed Screw Chiller
Cooling capacities from 471 kW to 1660 kW
At Eurovent Standard Conditions this equipment meets A Class energy eff ciency levels.
Features
- Reduce your annual energy costs by as much as 30%
- Reduce your sound levels by up to 16 dBA to meet tighter regulations
- Enhance your flexibility with a variety of chiller options to ft your needs
- Minimise your environmental impact dramatically
- Lower your part load energy and night time sound levels with inverter fans and compressors
- Deliver increased motor longevity and increased chiller reliability with low starting currents
- Cut your operational expenses with a high chiller power factor at all loads
- Improve your peace of mind knowing we stand behind every chiller
Options / Accessories
- BMS Interfacing options
- Advanced Controls (Silent nightTM, Quick restart)
- Low temperature application options
- Dual pressure relief valves
- Flow switch
- Epoxy treatment Microchannel Coils
- Fan options
- Enclosure options
- Sound attenuation options
- Anti-vibration mounts options
- Desuperheater
Air-cooled VSD screw chiller

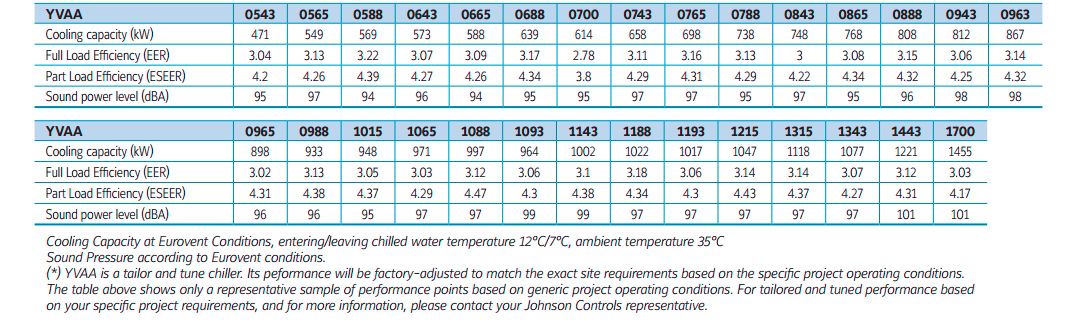

Application flexibility (*) example of selections

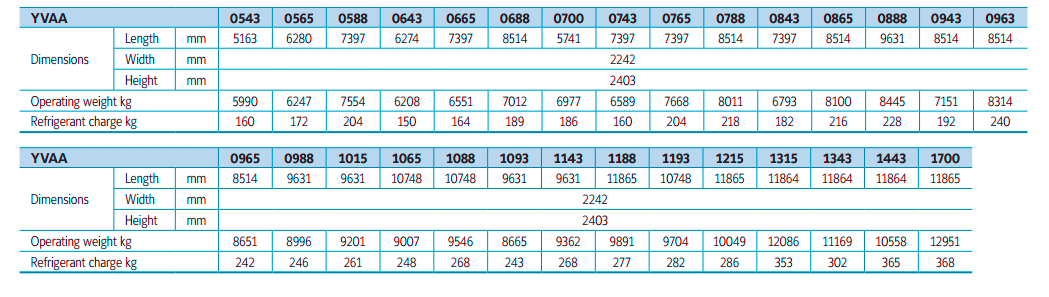

Technical data
Dimensions and hydraulic connections

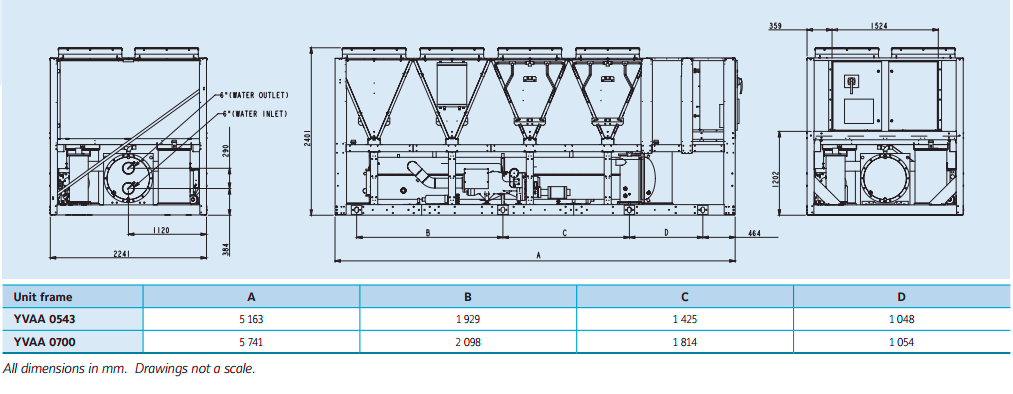

All drawings are for two pass evaporator. For other confgurations, please, contact JCIYVAA 0543 & 0700

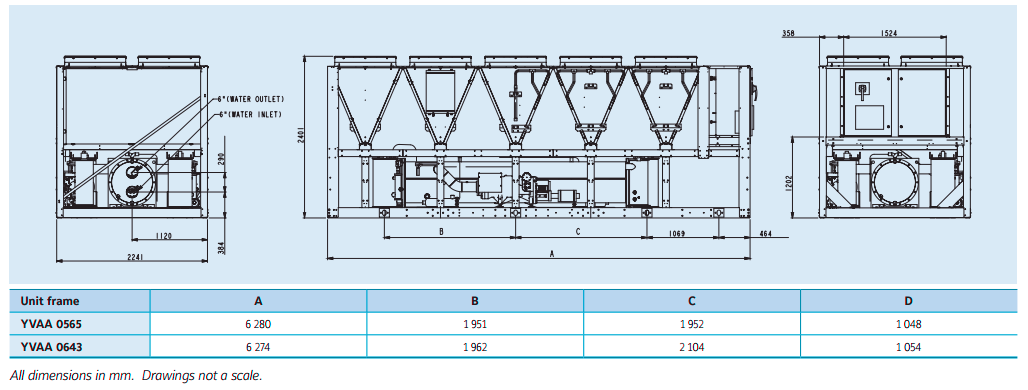

YVAA 0565 & 0643

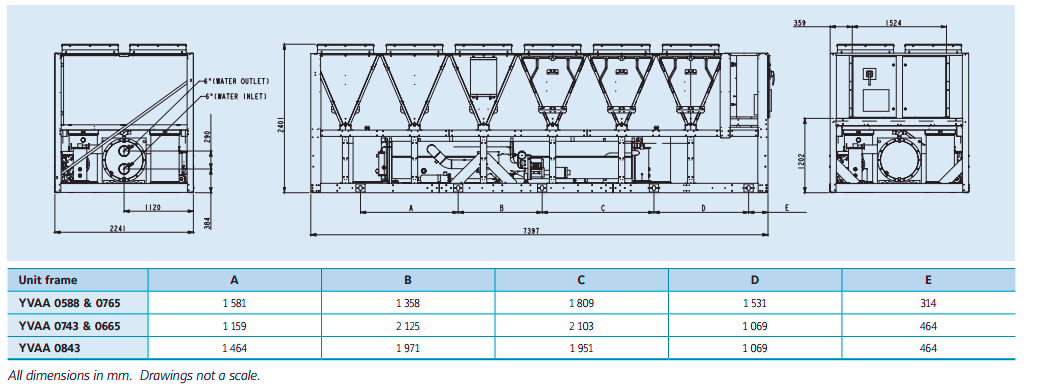

YVAA 0588, 0665, 0743, 0765 & 0843

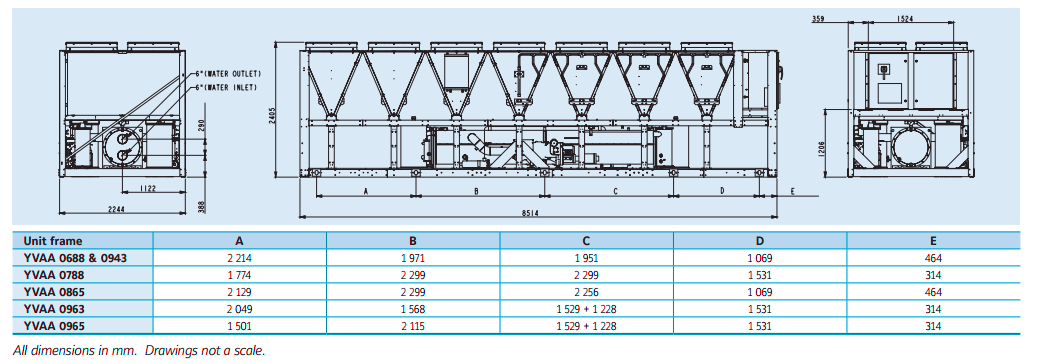

YVAA 0688, 0788, 0865, 0943, 0963 & 0965

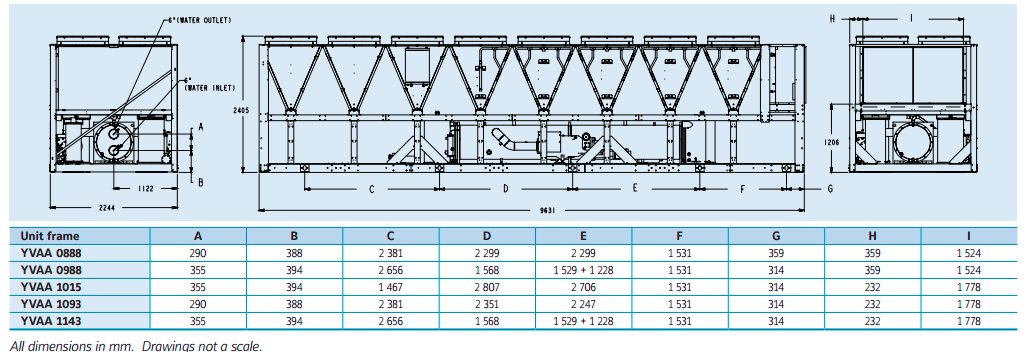

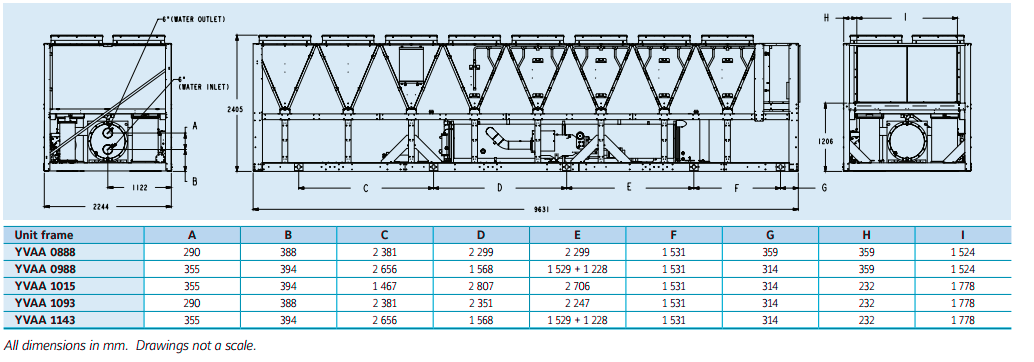

YVAA 0888, 0988, 1015, 1093, & 1143
YVAA 0888, 0988, 1015, 1093, & 1143

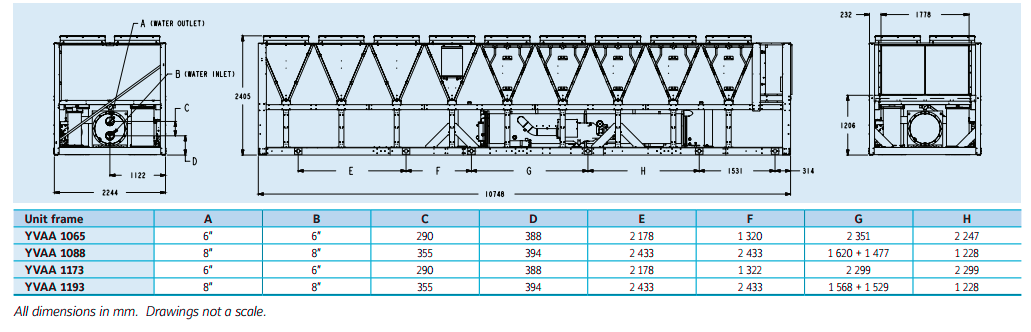

YVAA 1065, 1088, 1173, & 1193

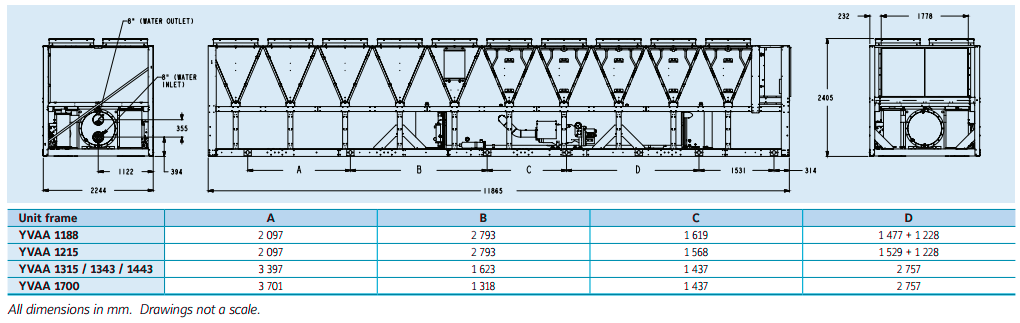

YVAA 1188, 1215, 1315, 1343, 1443 & 1700
